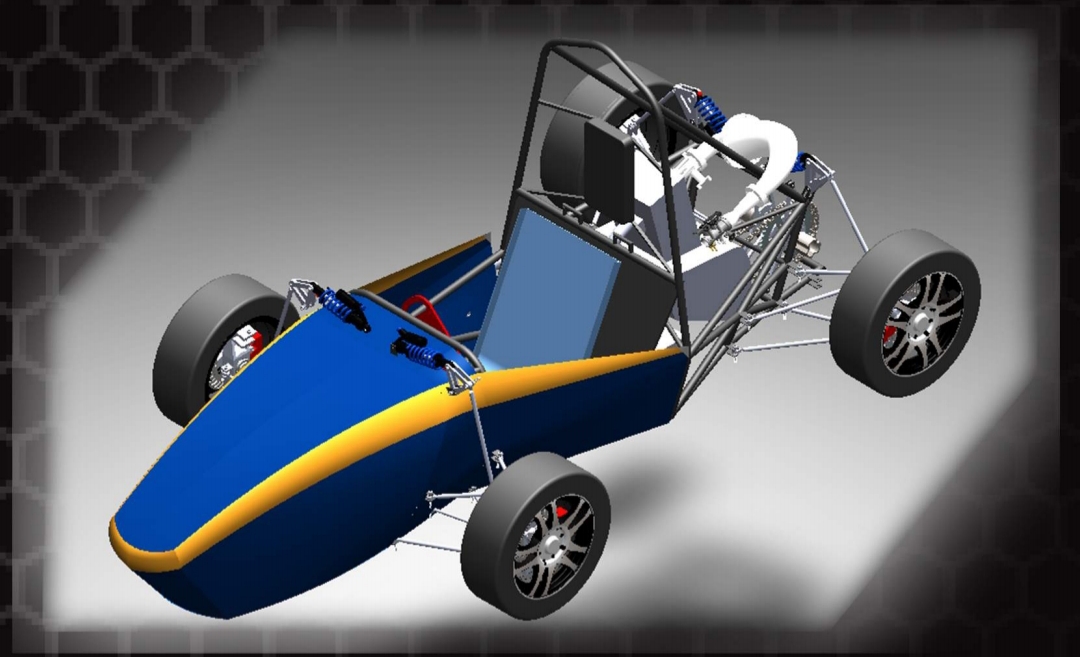

Abhyuday

PERFORMANCE

Power: 26.15 BHP @8500 rpm
Torque: 22.9 nm @7000 rpm

POWER TRAIN

Engine: Honda CBR250R
Differential: Open Chain Drive
Battery: 12V
Intake: Custom 3D printed

OVERALL

Weight: 300 kg
Wheelbase: 1650cm

CHASSIS

Frame: Tabular Space Frame AISI4130
Bodywork: FRP

SUSPENSION AND WHEEL ASSEMBLY

Tyre: 155/65R13
Dampers: Front - 240mm DNM
Rear - 210mm DNM

Design


Ample of research papers are studied before designing the model of various subsysytems making sure that they abide the official rulebook presented by the competition. After designing every individual subsysytem is tested for various situation using the best software available in order to assure the reliability of the design. After assembly on the software, reiterations are carried out so all the subsysytem can come together and work in harmony. Software used: SolidWorks, autocad, Ansys, Catia, Lotus.

Manufacture


After completing all sysytem based tests and conformance of reliability the various subsysytems undergo various manufacturing processes. The requirements for various parts are fulfilled by a variety of machines.During and other machining it is made sure that the quality of the part is not degraded and structural integrity is optimum. Machines used: Laser Cutting, VMC, CNC, Lathe, TIG Welding, Bending, Hobbing and 3D printer

Benefits: On-road

Main Event

> Standees and Banner in the pit.
> Logo on Car and T-shirt.
> Top media channels covering the event.

Unveiling

> Sponsor mention during the event.
> Logo on backdrop.
> Display of standees on stage
> Guest from your firm for the event

Campus

> Banners throughout college.
> Standees during promotional events.
> Exclusive events and stails

Custom

> Free Volunteering Crew.
> Special benefits as per your requestscan be included.

Benefits: Off-road

Main Event

> Livestreaming
> Special mentions on social media.

Unveiling

> Livestreaming
> Special mentions during event.
> Ineractive Events.

Campus

> Exposure to College students.
> Mention on Collge Website.
> Mention in college newsletter

Custom

> Inclusion in TR movie.
> Newspaper Appreciation.
